Kronos Gripto 608 I 609 I 708 I 709
Kronos Gripto cranes are now available in four new models: Gripto 608 and 608, as well as Gripto 708 and 709. The cranes are easy to operate and a perfect supplement to our largest cranes Gripto 1009 and Gripto 1010. The Gripto 700 series is available with Smart Boom Control (crane tip control), which makes steering easier than ever. Gripto offers well-protected hoses inside the second boom all the way to the rotator. The hose dimension is also big enough to get maximal speed with minimum pressure losses.
Features:
- Phenomenal precision and fast movements
- Electronic end damping on the extensions (700 series), optional (600 series)
- Protected hoses inside the outer boom and out to the rotator
- Smart Boom Control, optional (700 series)
More info
PRODUCT INFORMATION
| Model | Gripto 1009 | Gripto 1010 | Gripto 608 | Gripto 609 | Gripto 708 | Gripto 709 | Gripto 607 | Gripto 707 | 4000 | 4000 L |
| Attaching | Flange | Flange | Flange | Flange | Flange | Flange | Flange | Flange | Flange | Flange |

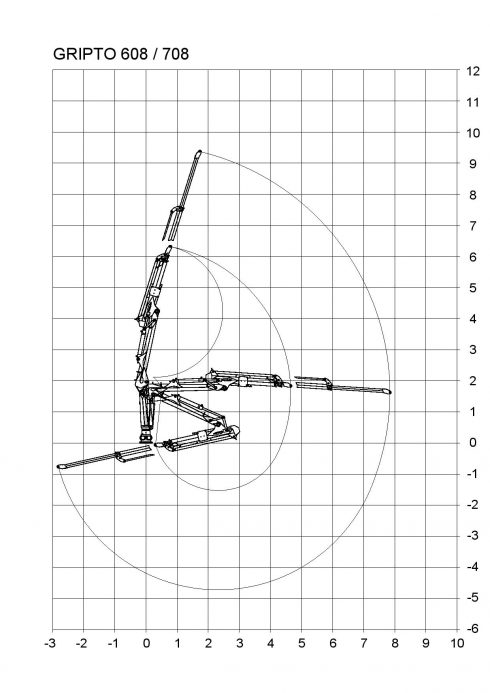

| Max outreach, m | 8.5 | 10 | 7,8 | 8,5 | 7,8 | 8,5 | 7,4 | 7,4 | 6.6 | 7.1 |
| Length of main boom, m | 3.68 | 3.68 | 2,65 | 3,35 | 2,65 | 3,35 | 3,35 | 3,35 | 3 | 3.5 |
| Length of extension boom, m | 2x1.6 | 2x2.0 | 2x1,6 | 2x1,6 | 2x1,6 | 2x1,6 | 1,9 | 1,9 | 1.50 | 1.50 |
| Height, m | 2.13 | 2.13 | 1,9 | 1,9 | 1,9 | 1,9 | 1,9 | 1,9 | 1.7 | 1.7 |
| Width, m | 1.46 | 1.46 | 1,25 | 1,25 | 1,25 | 1,25 | 1,25 | 1,25 | 1.48 | 1.48 |
| Lifting moment, brutto/netto, kNm | 104 | 104 | 62/41 | 62/37 | 75/52 | 75/48 | 62/38 | 75/50 | 39.3/30.0 | 39.3/29.0 |

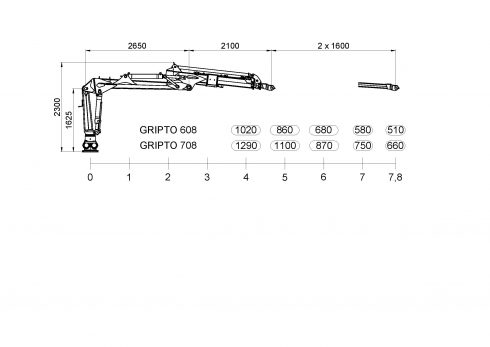

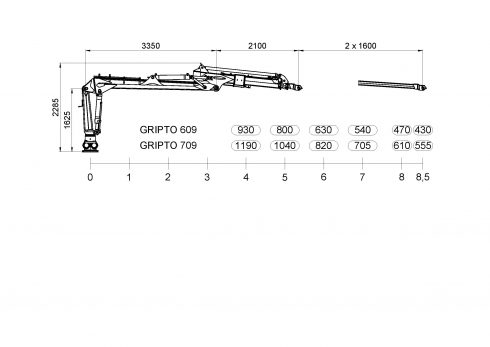

| Allowable load, kg/4m (without grapple and rotator) | 1740 | 1630 | 1020 | 930 | 1290 | 1190 | 960 | 1240 | 760 | 710 |
| Turning angle of boom, degrees | 380 | 380 | 380 | 380 | 380 | 380 | 380 | 380 | 390 | 390 |
| Turning moment, brutto, kNm | 30 | 30 | 20 | 20 | 20 | 20 | 20 | 20 | 7,9/15,3 | 7,9/15,3 |
| Lubrication of turning device | Oil | Oil | Oil | Oil | Oil | Oil | Oil | Oil | Oil | Oil |
| Cylinders in turning device, pcs | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 2 | 2 |
| Turning angle of rotator | ∞ | ∞ | ∞ | ∞ | ∞ | ∞ | ∞ | ∞ | ∞ | ∞ |
| Turning moment of rotator, Nm | 1400 | 1600 | 1600 | 1600 | 1600 | 1600 | 1600 | 1600 | 900 | 900 |
| Grapple size, m² | 0.27 | 0.27 | 0,26 | 0,26 | 0,26 | 0,26 | 0,26 | 0,26 | 0.2 | 0.2 |
| Max opening of grapple, mm | 1475 | 1475 | 1450 | 1450 | 1450 | 1450 | 1450 | 1450 | 1250 | 1250 |
| Minimum grapple diameter, mm | 75 | 75 | 85 | 85 | 85 | 85 | 85 | 85 | 80 | 80 |
| Width of grapple, mm | 345/425 | 345/425 | 290/340 | 290/340 | 290/340 | 290/340 | 290/340 | 290/340 | 280/320 | 280/320 |
| Weight, grapple + rotator, kg | 250 | 250 | 190 | 190 | 190 | 190 | 190 | 190 | 110 | 110 |
| Weight, basic loader, kg | 1550 | 1600 | 1150 | 1180 | 1170 | 1200 | 1120 | 1140 | 660 | 670 |
| Working pressure, bar | 210 | 210 | 210 (Low pressure version 185) | 210 | 210 | 210 | 210 | 210 | 175 | 175 |
| Recommended pump output, l/min | 100-180 | 100-180 | 80-120 | 80-120 | 80-120 | 80-120 | 80-120 | 80-120 | 40-80 | 40-80 |
| Attaching | Gripto 1009 | Gripto 1010 | Gripto 608 | Gripto 609 | Gripto 708 | Gripto 709 | Gripto 607 | Gripto 707 | 4000 | 4000 L |
| Recommended trailer | 140-160 | 140-160 | 120-160 | 120-160 | 120-160 | 121-160 | 120-160 | 120-160 | 100 | 100 |
| Model of crane base | S | S | S, W04 | S, W04 | S, W04 | S, W04 | S,W04 | S, W04 | A01, W04 | A01, W04 |
| Tractor with chassis brackets | O | O | O | O | O | O | O | O | O | O |
| Equipment | Gripto 1009 | Gripto 1010 | Gripto 608 | Gripto 609 | Gripto 708 | Gripto 709 | Gripto 607 | Gripto 707 | 4000 | 4000 L |
| Swing damper | S | S | S | S | S | S | S | S | S | S |
| Lift and swing damper | S | S | O | O | S | S | O | S | O | O |
| Hydr. Winch | O | O | O | O | O | O | O | O | O | O |
| Service stair & anti-slip device | S | S | S | S | S | S | S | S | O | O |
S = Standard equipment, O = Optional equipment.
